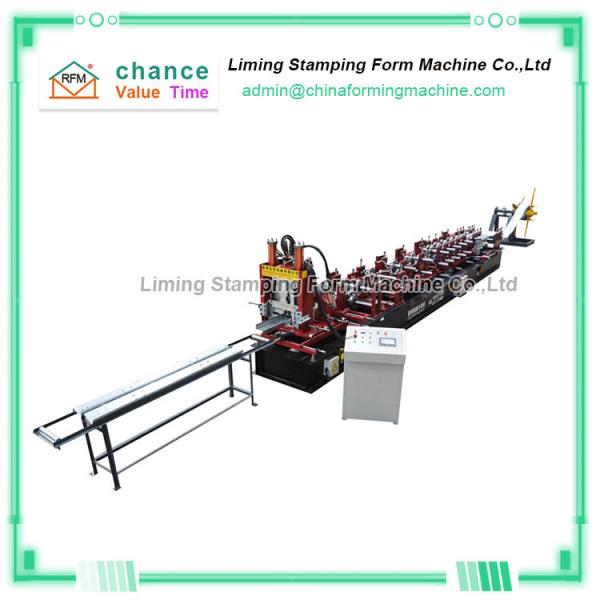

CZ Purlin Roll Forming Machine GCr 15 Roller PLC Controlling

Name: CZ Purlin Roll Forming Machine GCr 15 Roller PLC Controlling
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Model Number : LM-purlin18

Certification : CE、BV、ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 450set/Year

Delivery Time : 30 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Core Components : PLC, Motor

Processing custom galvanized C shaped purlin steel roll forming machine : 10-15m/min

Roller station : 18 Stations+ Straightening Rollers

Controlling Mode : PLC+Touch Screen

Roller material : GCr 15

Dimension(L*W*H) : 7000*1000*1500

Thickness : 1.5-3mm

Contact Now

Easy To Operate C And Z Interchangeable Purlin Forming Machine

Introduce "Easy to operate C and Z interchangeable purlin forming machine" in detail

The "Easy to operate C and Z interchangeable purlin forming machine" adopts stepless variants, with only larger or smaller specifications, and can be changed arbitrarily within the scope;

The "Easy to operate C and Z interchangeable purlin forming machine" only needs to rotate the adjusting device when changing the model, and the model change can be completed within 5 minutes;

"Easy to operate C and Z interchangeable purlin forming machine" only needs to be adjusted to the parameter position on the scale when changing the model, without tool measurement and manual estimation;

The "Easy to operate C and Z interchangeable purlin forming machine" has three options for changing models: manual, semi-automatic and fully automatic.

The "Easy to operate C and Z interchangeable purlin forming machine" is a single-roll forming unit that can produce CZ pur strips of various specifications through a set of rollers.

Technical parameters of Easy To Operate C And Z Interchangeable Purlin Forming Machine

No	Item	Parameter
1	Forming Shaft	40CR with grinding process and heat treatment HRC28-32,twice CNC
2	Forming Roller	CR12 with vacuum heat treatment with hard chrome coatingHRC50-52
3	Cutting Blade	Cr12MoV with hard treatment
4	Control System	PANASONIC PLC, others are Schneider etc.
5	Electrical motor	China quality brand
6	Touch screen	Win view
7	PLC	Panasonic
8	Rely	Schneider
9	Encoder	Omron
