G550 Roof Panel Roll Forming Machine cr12mov Blade

Product Categories

Liming Stamping Form Machine Co.,Ltd

Contact Now

Name: G550 Roof Panel Roll Forming Machine cr12mov Blade
Brand: Liming
Price: 1 USD

Brand Name : Liming

Model Number : LM-RS6

Certification : CE、ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 300set/Year

Delivery Time : 45 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Blade Material : cr12mov

Material Strength : G300–G550

Total Weight : About 3.5 T

Under frame : 350 H-beam

Roller station : 13-18 rows

Hydraulic Station Power : 3kw

Thickness : 0.25-0.75mm

Shafts diameter : 70mm

Warranty : 24 months

Contact Now

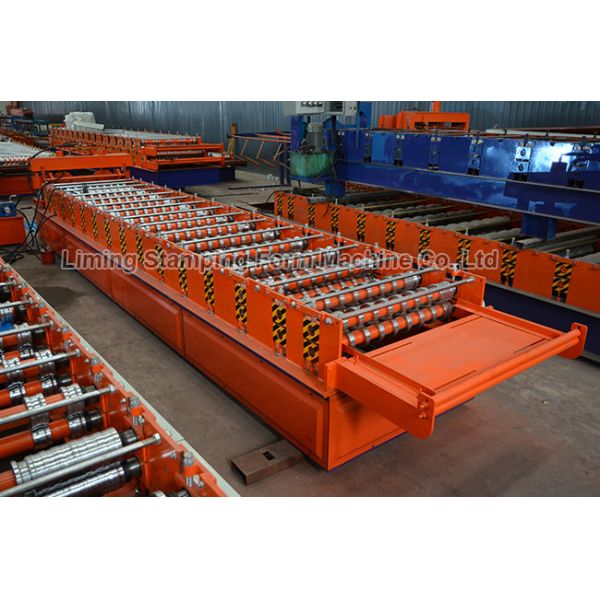

Galvanized Metal Roofing Sheet Panel Roller Former Making Machine

Cutting system of Galvanized Metal Roofing Sheet Panel Roller Former Making Machine

Fully automatic hydraulic cutting, safe and efficient without waste

Rolls and shafts of Galvanized Metal Roofing Sheet Panel Roller Former Making Machine

High-precision rolls, rollforming, selected international high-quality steel

Control system of Galvanized Metal Roofing Sheet Panel Roller Former Making Machine

Digital control intelligentsystem, the productionstatus is very clear

Technical parameters of Galvanized Metal Roofing Sheet Panel Roller Former Making Machine

Galvanized Metal Roofing Sheet Panel Roller Former Making Machine
1.Raw material	Thickness	0.25-0.75mm
2.Decoiler	Operation	automatic
2.Decoiler	Weight apacity	4-5t
3.Main body	Roller station	13-18 rows
	Diameter of shaft	70-80mm
	Material of rollers	45# steel
	Material of shaft	45# steel
	Frame	16-18mm
	Chain	1.32-1.97inch
4.Cutter	Operate	auto
4.Cutter	Blade Material	cr12mov
5. Power	Voltage	customized
5. Power	Power	7.5kw
6.Control system	Electric Box	customized/Delta
6.Control system	Language	english chinese/customzied
7.Forming Speed	Forming Speed	20-35m/min

G550 Roof Panel Roll Forming Machine cr12mov Blade
