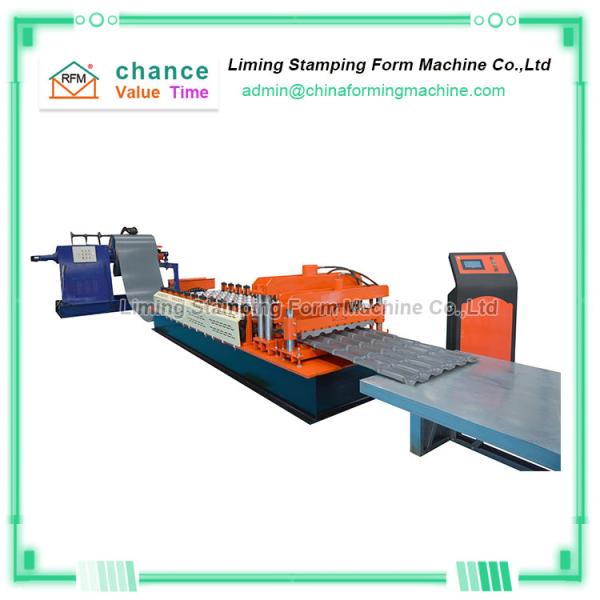

Glazed Tile Roof Panel Roll Forming Machine Hydraulic Cutting

Name: Glazed Tile Roof Panel Roll Forming Machine Hydraulic Cutting
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Model Number : LM-roofing sheet 51

Certification : CE、ISO、BV

Place of Origin : Hebei China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60set/Year

Delivery Time : 35 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Cutting type : Hydraulic Cutting

raw material thickness : 0.3-0.8mm

After-sales Service Provided : Engineers available to service machinery overseas

Production Capacity : 20-25m/min

Dimension(L*W*H) : 7300*1550*1200mm

Weight : 6.5T

Rows of rollers : 15rows & 16 rows

Core Components : Bearing, Pump, PLC

Warranty : 2 years

raw material width : 1250mm

Contact Now

Glaze Tile Roof Panel Roll Forming Machine Production Line

"glaze tile roof panel roll forming machine production line " is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structure houses.

"glaze tile roof panel roll forming machine production line " also has the characteristics of light weight, high strength, rich colors, convenient construction, earthquake resistance, fire prevention, rain resistance, long life, and maintenance-free.

The color of the colored steel plate produced by the "glaze tile roof panel roll forming machine production line " can be divided into many types according to user requirements, such as orange, cream yellow, dark sky blue, sea blue, deep red, brick red, ivory, porcelain Blue and so on, and the colors are also very bright, the surface without decoration is very beautiful.

Main parameters of Glaze Tile Roof Panel Roll Forming Machine Production Line

Product Name		glaze tile roof panel roll forming machine production line
Material	Type	Pre-painted & galvanized steel coil
	Thickness(mm)	0.3-0.7mm
	Tield stress(Mpa)	Q235-345
Max.forming speed (m/min)		10-15m/min
Roller material		#45 steel with hard chrome treatment
Roller driven type		Chain transmission
Controller		PLC
Operation		Touch screen and button
Hydraulic system pressure(Mpa)		12
Main motor power(KW)		4
Hydraulic station motor power		3
Dimension (LWH)		about 850015001500mm
Weight (KG)		about 6000
