GL Strip Light Gauge Steel Framing Machines 40Cr Shaft

Name: GL Strip Light Gauge Steel Framing Machines 40Cr Shaft
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Model Number : LM-lLGS32

Certification : CE、BV、ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 450set/Year

Delivery Time : 30 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Roller Material : Cr12 Mov vacuum heat treadment 58-62hrc

Turkey head machine : one set

Work Pressure : 11-120mpa

Warranty of core components : 2 years

Shaft material : 40Cr

Design System : Vertex BD

After-sales Service Provided : Engineers available to service machinery overseas

Dimension(L*W*H) : 15m*1.1m*1.2m

Contact Now

Corrosion-Resistant And Non-Rusting Light Steel Villa Keel Forming Machine

"Corrosion-resistant and non-rusting light steel villa keel forming machine" adopts large motors and low energy consumption;

Servo motor power is 7.5KW; hydraulic motor power is 3.75KW;

"Corrosion-resistant, non-rusting light steel villa keel forming machine" has high production efficiency: the production line speed is 35m/min (pressing speed: 15m/min).

"Corrosion-resistant, non-rusting light steel villa keel forming machine" completely breaks the traditional forming concept, will not jam, short forming time, neat products, small size, and convenient transportation.

"Corrosion-resistant and non-rusting light steel villa keel forming machine" is easy to install, easy to install, and has fire resistance.

Technical parameters of Corrosion-Resistant And Non-Rusting Light Steel Villa Keel Forming Machine

NO.	Item	Specification
1	Profile demension	14041.59mmm
2	Feeding width	233mm
3	Raw material	G300-G550 GI/GL strip(G450 recommended)
4	Thickness range	0.8mm-1.4mm
5	Machine dimensions	600010001500mm
6	Machine weight	3.5T
7	Forming method	12 steps
8	Drive mode	Gear+sprocket
9	Main motor	7.5kw servo motor
10	Roller, puncher and cutting blade material	SKD11
11	Main shaft material	40 cr
12	Forming speed	2400m/h
13	Punch tolerance	±1mm
14	Cutting tolerance	±0.75mm
15	Hydraulic motor power	7.5kw

Product Tags:

GL strip Light Gauge Steel Framing Machines

40Cr Shaft Light Gauge Steel Framing Machines

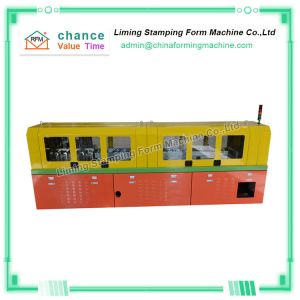

GL Strip Light Gauge Steel Framing Machines 40Cr Shaft Images
